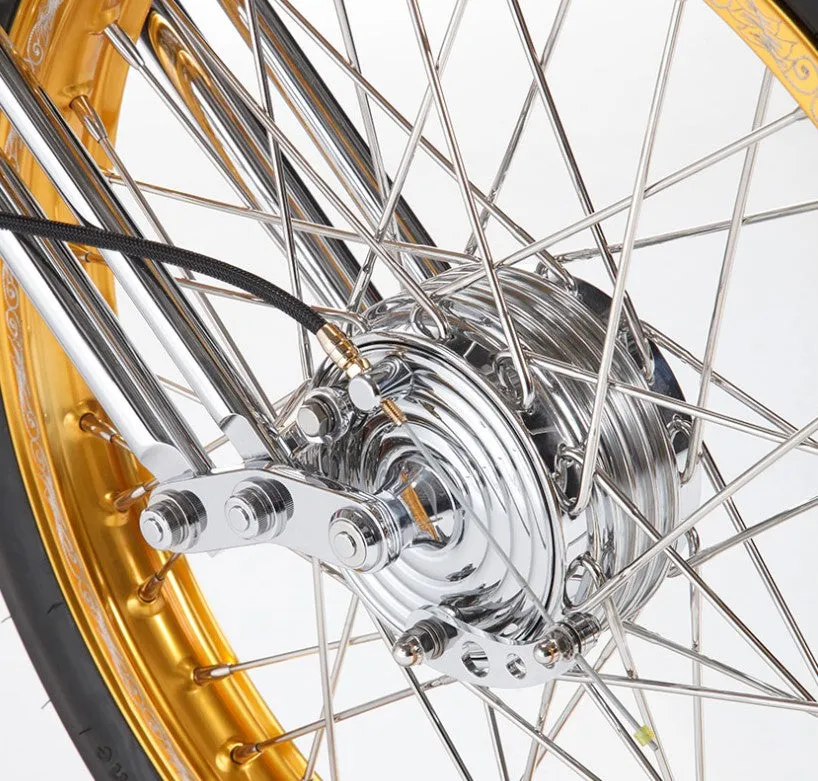

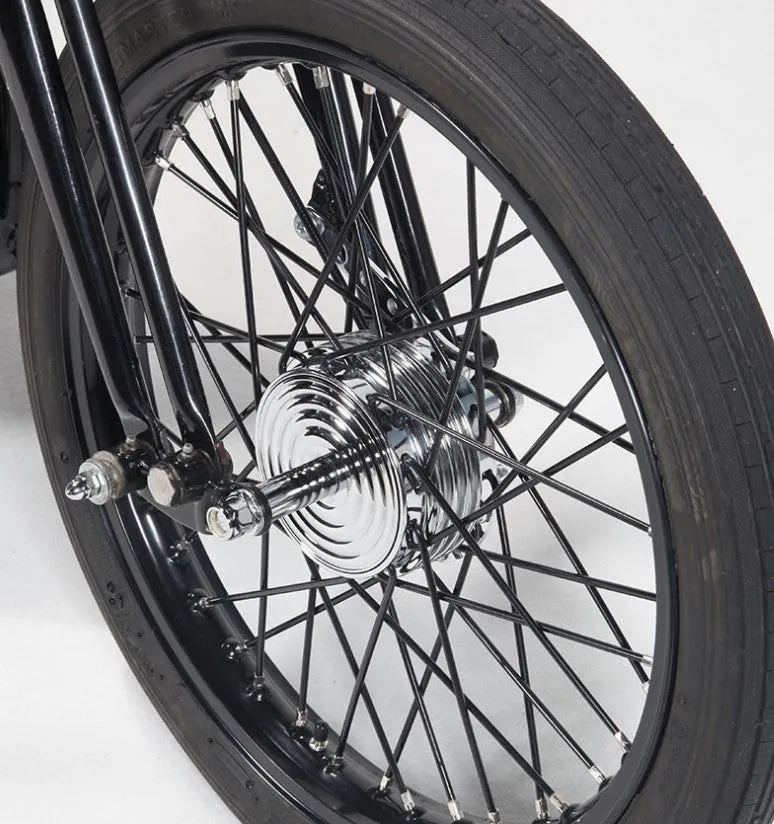

FRONT MINI DRUM BRAKE FOR SPRINGER FORK FRONTEND

Designed for springer fork with floating shoes plate, the mini front drum brake is build from a cast iron, material with a high coefficient of friction, which even with small size it work well.

In the central of the drum there are fins, that in addiction to giving a nostalgic look guarantee a good cooling.

The inner of the drum is machined to cnc to guarantee a perfect matching with the shoes.

The two side cover are made from aluminum, on the left cover there are the shoes (5"-1/8" Diameter)

The drilling of spokes is made to be assembled with 40 spokes rims, available all in chrome finish.

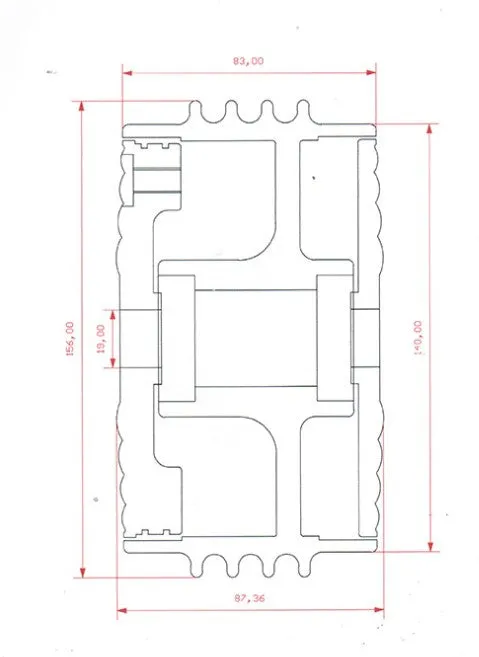

Comes with 3/4" wheel bearings, the size are, total width 3"-5/16" diameter 5"-1/2".
